SS201 304 plastic extrusion 40 80 100mesh plain dutch weave 14x88 mesh stainless steel woven iron wire mesh for filter
Stainless Steel Mesh Introduction
High-Density stainless steel woven mesh, also known as stainless steel wire mesh, square hole woven mesh, stainless steel mesh, is the use of superior stainless steel wire under specific high-temperature process conditions, through a drawing machine to a specific wire warp, and then at a constant temperature, Dust-free and clean workshops are woven by knitting machines.
High-Density stainless steel meshes commonly have 635 mesh, 500 mesh, 450 mesh, 400 mesh, 350 mesh, 325 mesh, 300 mesh, 280 mesh, 250 mesh, 200 mesh, 180 mesh, 150 mesh, 120 mesh, up to 3200 mesh Item.
The width dimension is 0.1~8 meters, and the filtering precision is 5-300μm.
The product materials are SUS302, 304, 304L, 316, 316L, 310, 310S dual-phase steel.
The weaving methods: plain weave, twill weave, dense weave, and special-shaped weave.
Due to the characteristics of stainless steel material, the product has the characteristics of acid resistance, alkali resistance, temperature resistance, and wear resistance.
If you are interested in our product, please contact me as soon as possible.
Stainless Steel Woven Mesh Material
| Name: | Stainless steel wire mesh,Stainless steel mesh screen,Stainless steel filter wire mesh, Metal wire mesh, Stainless steel square wire mesh |
| Material: | Stainless steel wire mesh 201/304/304L/316/316L/431/321 |
| mesh count: | 2-400 |
| Wire diameter: | 0.05mm-1.8mm |
| Width: | 0.5m-6m customized |
| Feature: | Due to high content of Ni and Cr, it is with good oxidation resistance, Corrosion resistance, acid and alkali resistance, high temperature resistance. The maximum service temperature is 1200 |
| Application: | Mainly used in petroleum, electronics, chemical industry, medicine, textile, food, mahinery, building, nuclear,power, aerospace, military industry etc. |
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot |
| Inch | MM | Inch | MM |
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Stainless Steel Woven Mesh Benefits:
1. Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
2. High open area/flow rate.
3. Closely controlled, accurate apertures.
4. Smooth surface - screening surface has no sharp edges, burrs or acute angles.
5. Very high-temperature tolerance (variable according to metal selected).
6. Usable under high pressure.
7. Flexible - ideal for forming rigid concave / convex shapes.
Stainless Steel Woven Mesh Applications
1. Wire mesh filter discs
2. Filter element
3. Sintered filter screen
4. Food strainer & Sieve
5. Liquid filters
6. Grain sieve
Packing
Woven wire mesh is available on the roll or cut to size.
Provide fine and strict packaging to ensure that the goods will not be damaged.

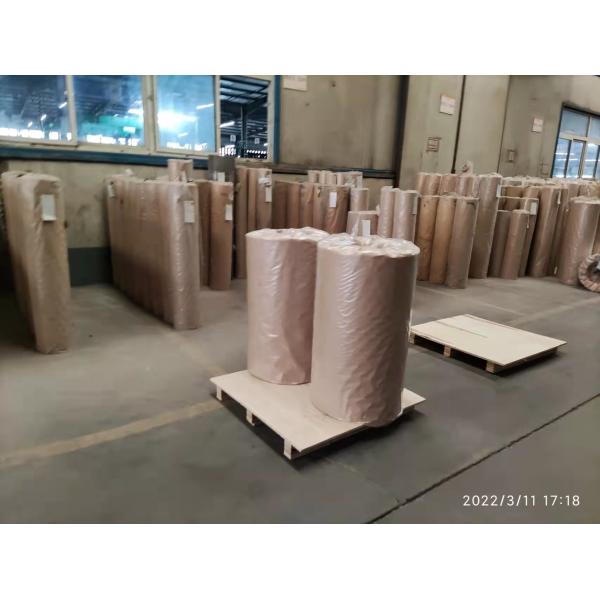

The usual packing is as the picture showed,or as costomized.
